- Place of Origin: SanDong
- Brand Name: Jinliang
- Model Number: QTZ50(4810/5008/5010)

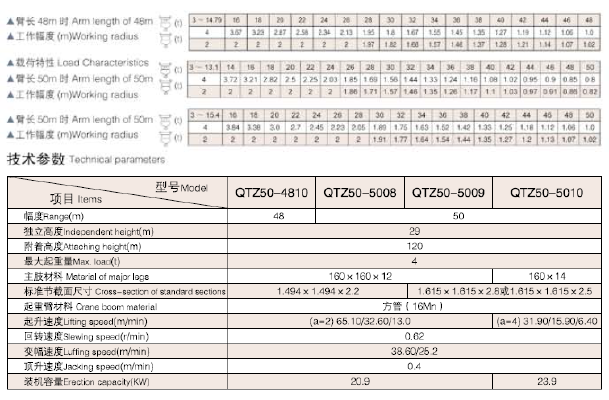

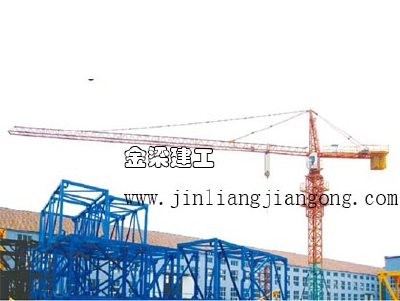

QTZ50
Rated lifting torque 400KN.m
Maximum lifting weight 4T
The maximum working range of 4246.8 ~ 50m
Independent height 29m
Attached height 120m
Lifting speed 7/40/60m/min
Rotary speed 0.37/0.73r/min
Variable amplitude 22/33m/min
Jacking speed 0.6 m/min
5, balance weight 6.5 t
The tower crane weight 23.5 ~ 26.16t
Power 380V, 50Hz
Operating temperature -20 ~ 40
- Place of Origin: SanDong
- Brand Name: Jinliang
- Model Number: QTZ50(4810/5008/5010)
QTZ50
Rated lifting torque 400KN.m
Maximum lifting weight 4T
The maximum working range of 4246.8 ~ 50m
Independent height 29m
Attached height 120m
Lifting speed 7/40/60m/min
Rotary speed 0.37/0.73r/min
Variable amplitude 22/33m/min
Jacking speed 0.6 m/min
5, balance weight 6.5 t
The tower crane weight 23.5 ~ 26.16t
Power 380V, 50Hz
Operating temperature -20 ~ 40
